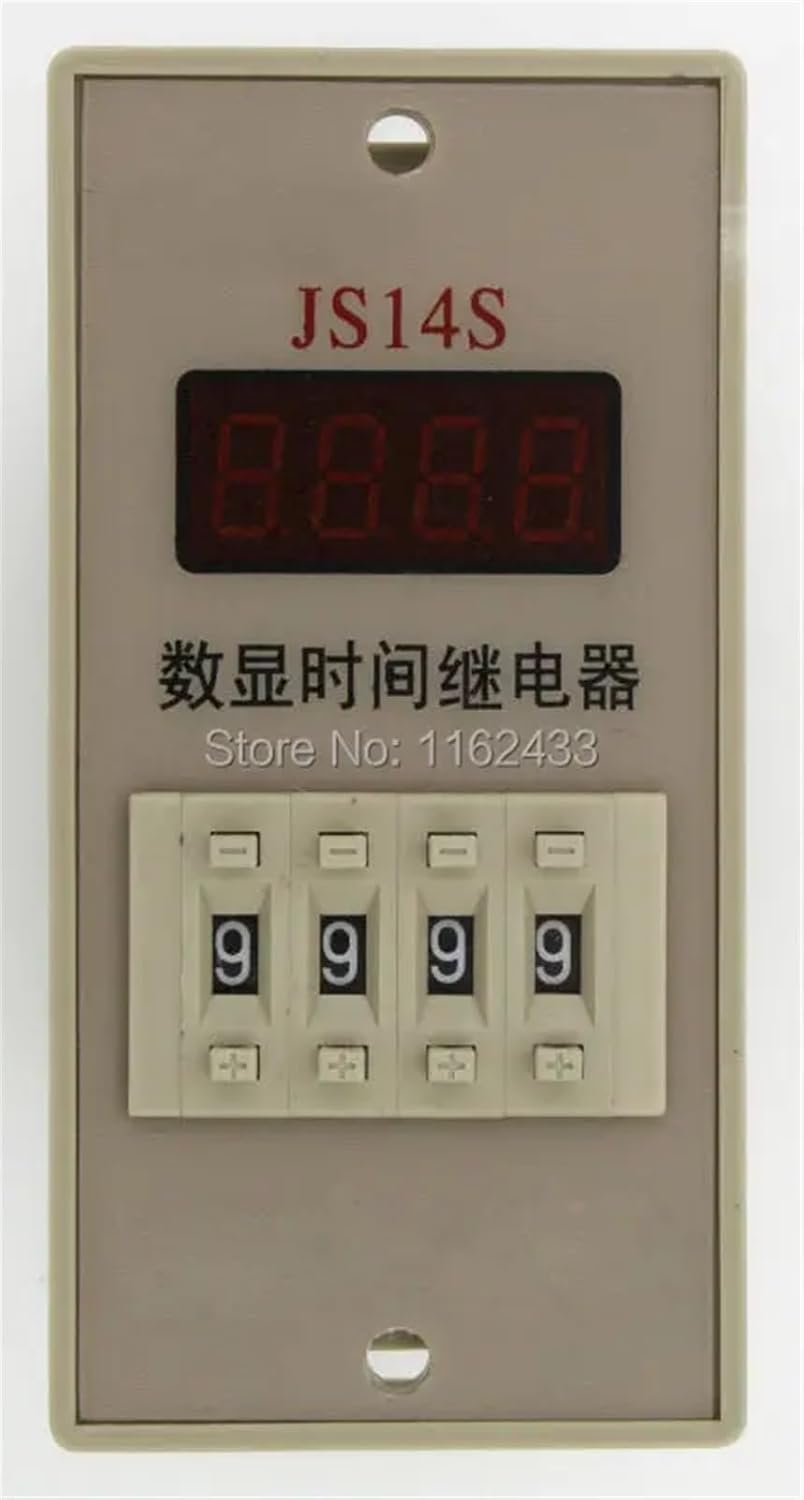

JS14S-4 DC 12V on-delay DPDT time Relay JS14S Series 12VDC delay Timer 99.99s 999.9s 9999s 9999min 99min59s 99h59min 9999 (Size : 9999h)

RelaysJS14S digital time relayContact form and delay timeModel numberContact formDelay timeRelated productJS14S-2On-delay DPDT9.9s/99s/99m/99h/0.1s-99hOrderJS14S-3On-delay DPDT9.99s/99.9s/999s/999m/999h/1s-9m59s/1m-9h59m/0.01s-999hOrderJS14S-4On-delay DPDT99.99s/999.9s/9999s/9999m/9999h/1s-99m59s/1m-99h59mVisiting...JS14S-4 time relay model number legendJS14S-4Parent Model NumberSupply voltage-DA: 100-240VAC/DC-380VAC: 380VAC-24V: 24VAC/DC-12V: 12VAC/DCDelay time-99.99S: 99.99s-999.9S: 999.9s-9999S: 9999s-9999M: 9999min-MS: 99min59s-HM: 99h59min-9999H: 9999hGeneralModel numberJS14SSupply voltage100V-240VAC/DC; 36, 380 Vac, 50/60 Hz; 12, 24 Vdc;Tolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltagePower consumption3W maxSetting methodDial switchIndication method8-segment digital displayExternal dimensions126x104x52 mmPerforate dimensions 77 1/0x46 1/0 mmContact rating3A@250Vac, 5A@24VdcRepeat accuracy±0.3%, ±0.05 secSetting error±0.5%, ±0.05 secTermination11 pinsMountingPanelMatched socketPF113AMechanical life1x106Electrical life1x105Operating temperature-5 to 45 °C (23 to 113 °F)Operating humidity95% RH max, non-condensingAlias nameJS14S digital timerJS14S-4 time relay related productsNoModel NumberSupply VoltageDelay TimeRelated Product1 JS14S-4-DA-99.99S(-999.9S, -9999S, -9999M, -MS, -HM, -9999H)100-240VAC/DC99.99s; 999.9s; 9999s; 9999min; 99min59s; 99h59min; 9999hOrder2 JS14S-4-380VAC-99.99S(-999.9S, -9999S, -9999M, -MS, -HM, -9999H)380VAC99.99s; 999.9s; 9999s; 9999min; 99min59s; 99h59min; 9999hOrder3 JS14S-4-24
